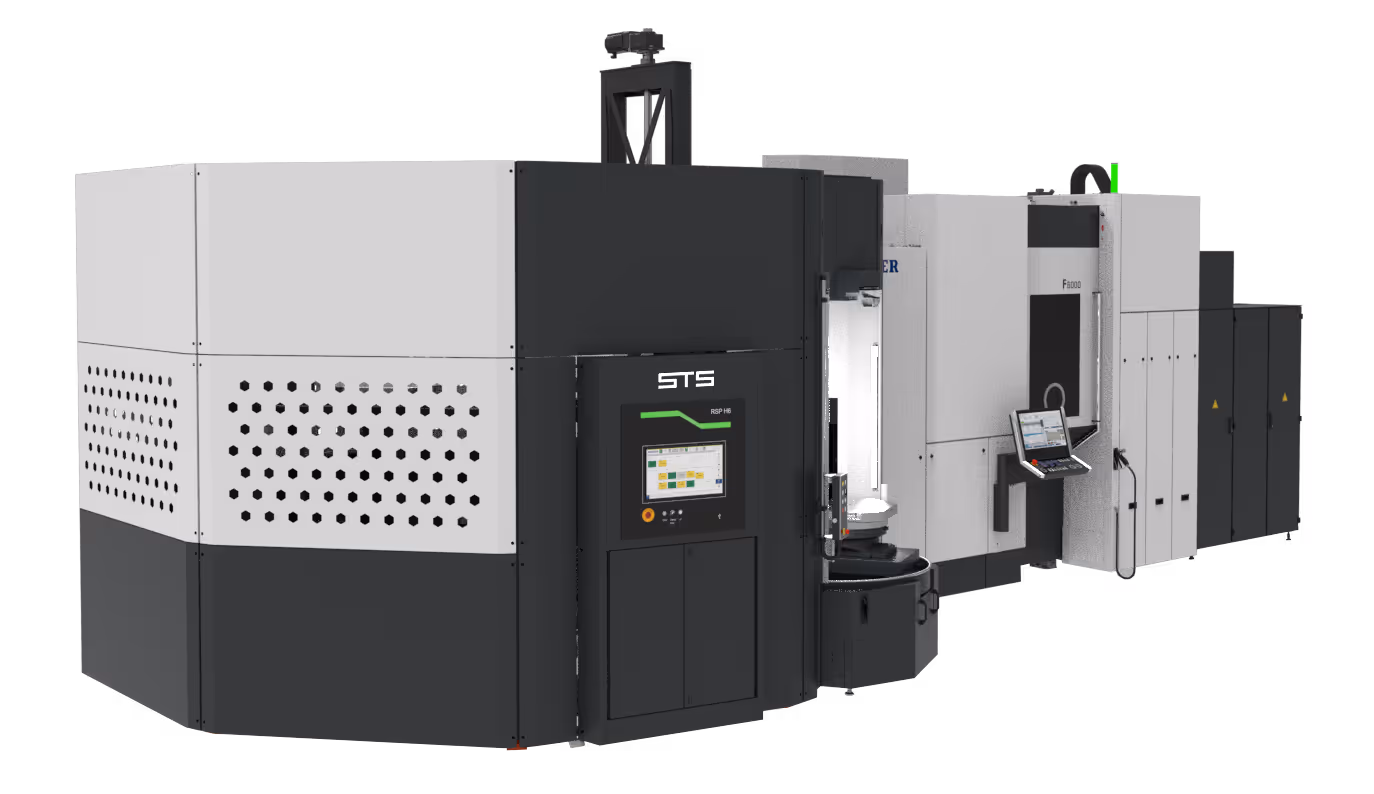

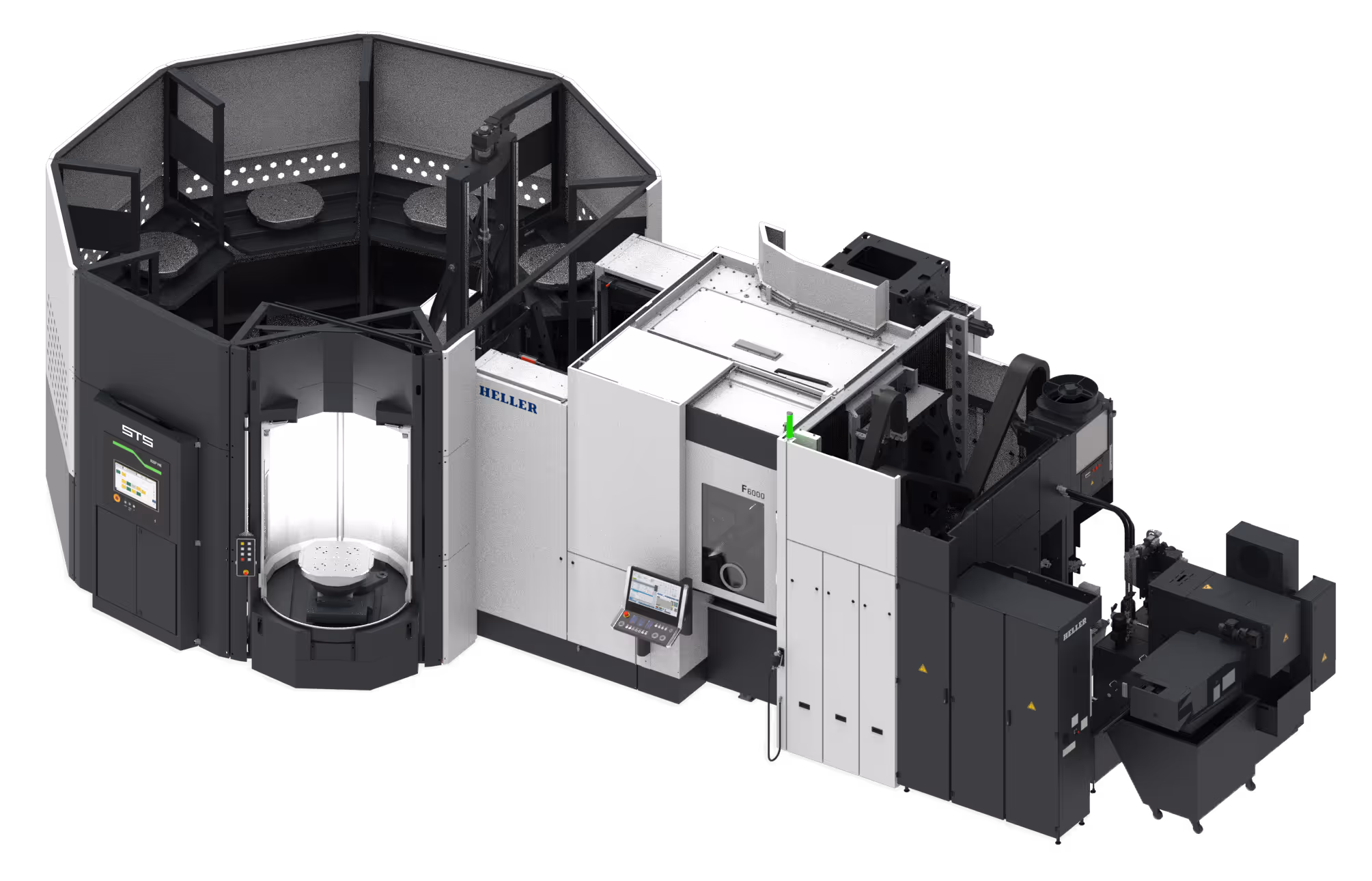

The flexible automated pallet system is specialised inequipping up to two machining centres with machine pallets– with a minimum installation surface. With the three-levelsystem, up to 21 pallets can be used. With a transportweight of 5.8 tonnes, the system also enables large machinesto be loaded. A user-friendly and intuitive interfacehas been implemented on the touch panel that ensuresthe best user experience. Even without external controlsystems, RSP is able to utilise the machines optimallyto achieve the highest level of productivity
Various space-saving options individually customized to your requirements:

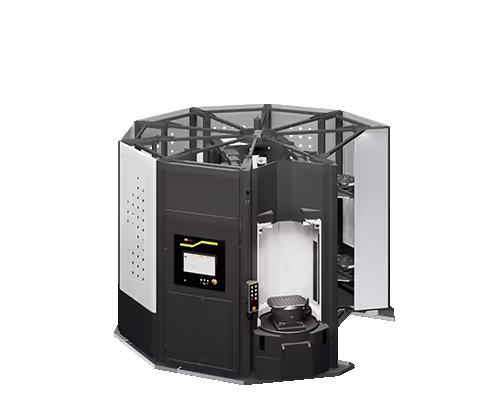

RSP H2
Storage places up to 13
Storage places incl. 3. floor¹ up to 20
Installation area Ø 4360 mm
Height Standard 3380 mm
Height incl. 3. floor¹ 4580 mm
Max. clamping weight 900 kg
Max. Workpiece height² incl. pallet 945 mm
Max. workpiece dimensions 850 mm 720 mm (BD)

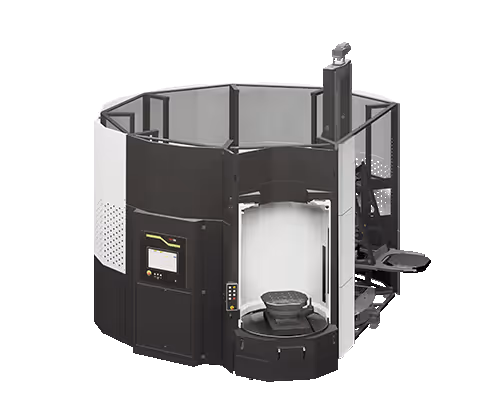

RSP H4
Storage places up to 11
Storage places incl. 3. floor¹ up to 17
Installation area Ø 4820 mm
Height Standard 3980 mm
Height incl. 3. floor¹ 4430 mm
Max. clamping weight 1600 kg
Max. Workpiece height² incl. pallet 1095 mm
Max. workpiece dimensions 1090 mm 900 mm (BD)

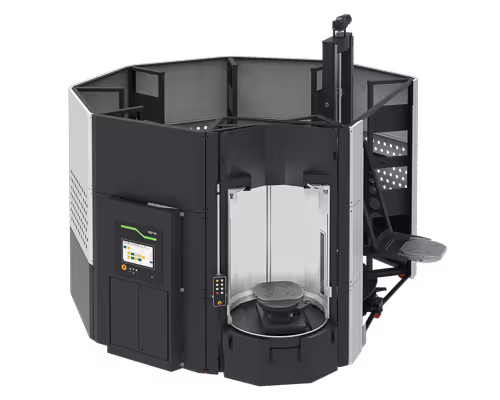

RSP H6
Storage places up to 11
Storage places incl. 3. floor¹ up to 17
Installation area Ø 5830 mm
Height Standard 3980 mm
Height incl. 3. floor¹ 4430 mm
Max. clamping weight 1600 kg
Max. Workpiece height² incl. pallet 1200 mm
Max. workpiece dimensions 1540 mm 1000 mm (BD)
RSP H8
Storage places up to 12
Installation area Ø 8330 mm
Height Standard 4400 mm
Max. clamping weight 2720 kg
Max. Workpiece height² incl. pallet 1400 mm
Max. workpiece dimensions 1810 mm 1250 mm (BD)
RSP H10
Storage places up to 10
Installation area Ø 8900 mm
Height Standard 4700 mm
Max. clamping weight 5800 kg
Max. Workpiece height² incl. pallet 1700 mm
Max. workpiece dimensions 2160 mm 1600 mm (BD)
¹ Option ² In order to increase the number of storage locations, the height of the storage locations can be adjusted at the cost of the workpiece height.
More storage space through flexibility

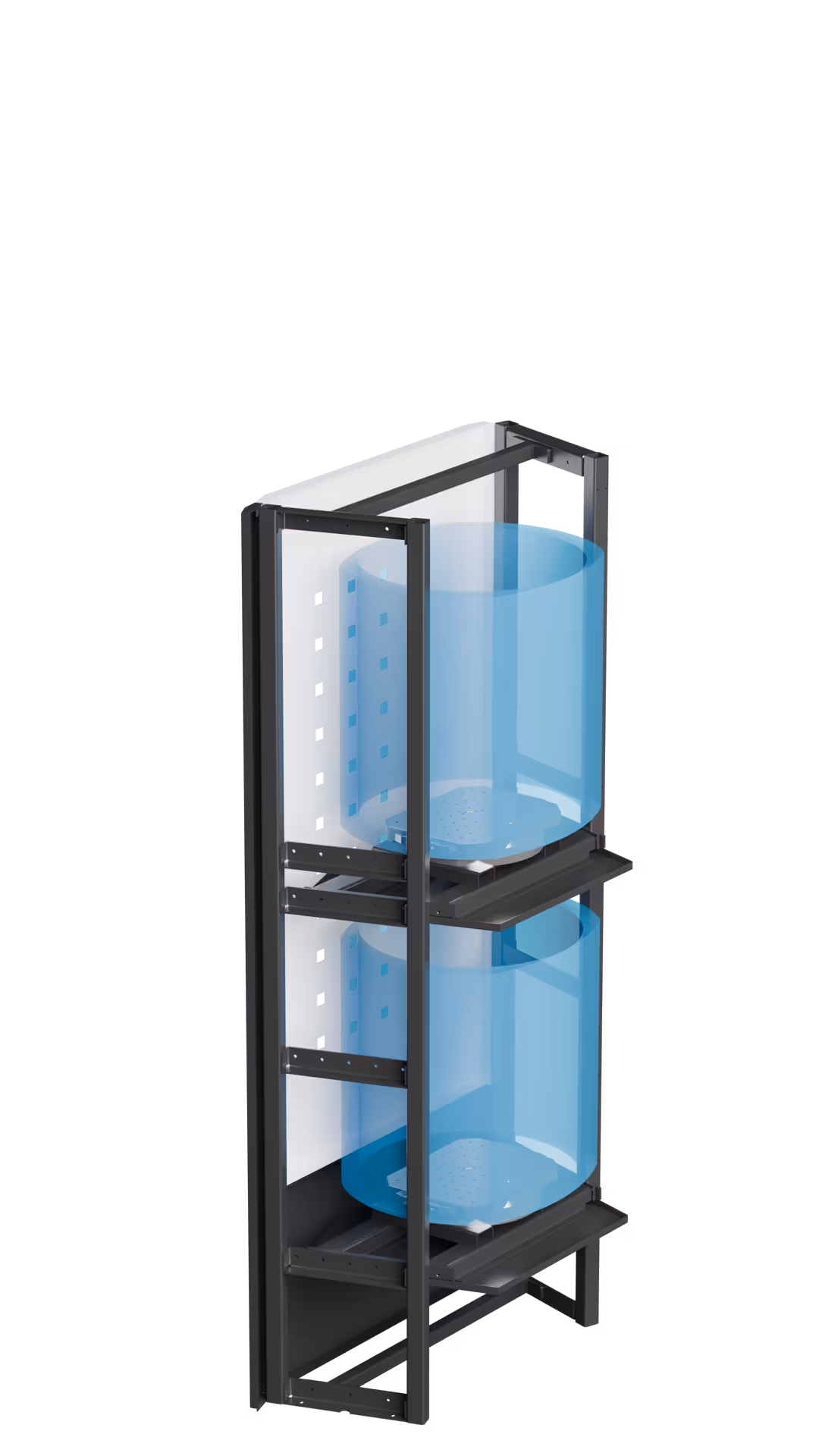

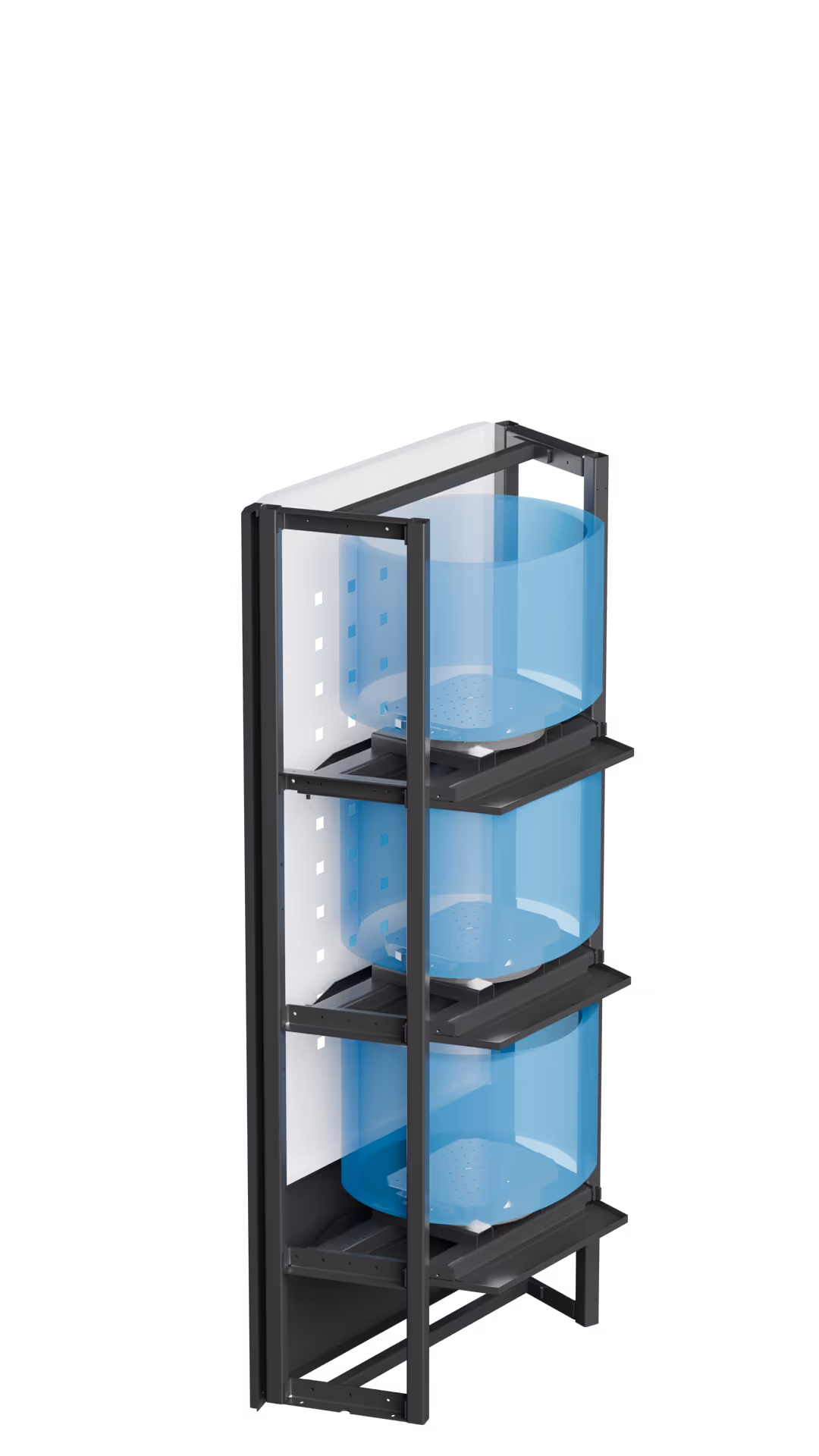

Basic module
pallet storage spaces on two levels
maximum workpiece height possible

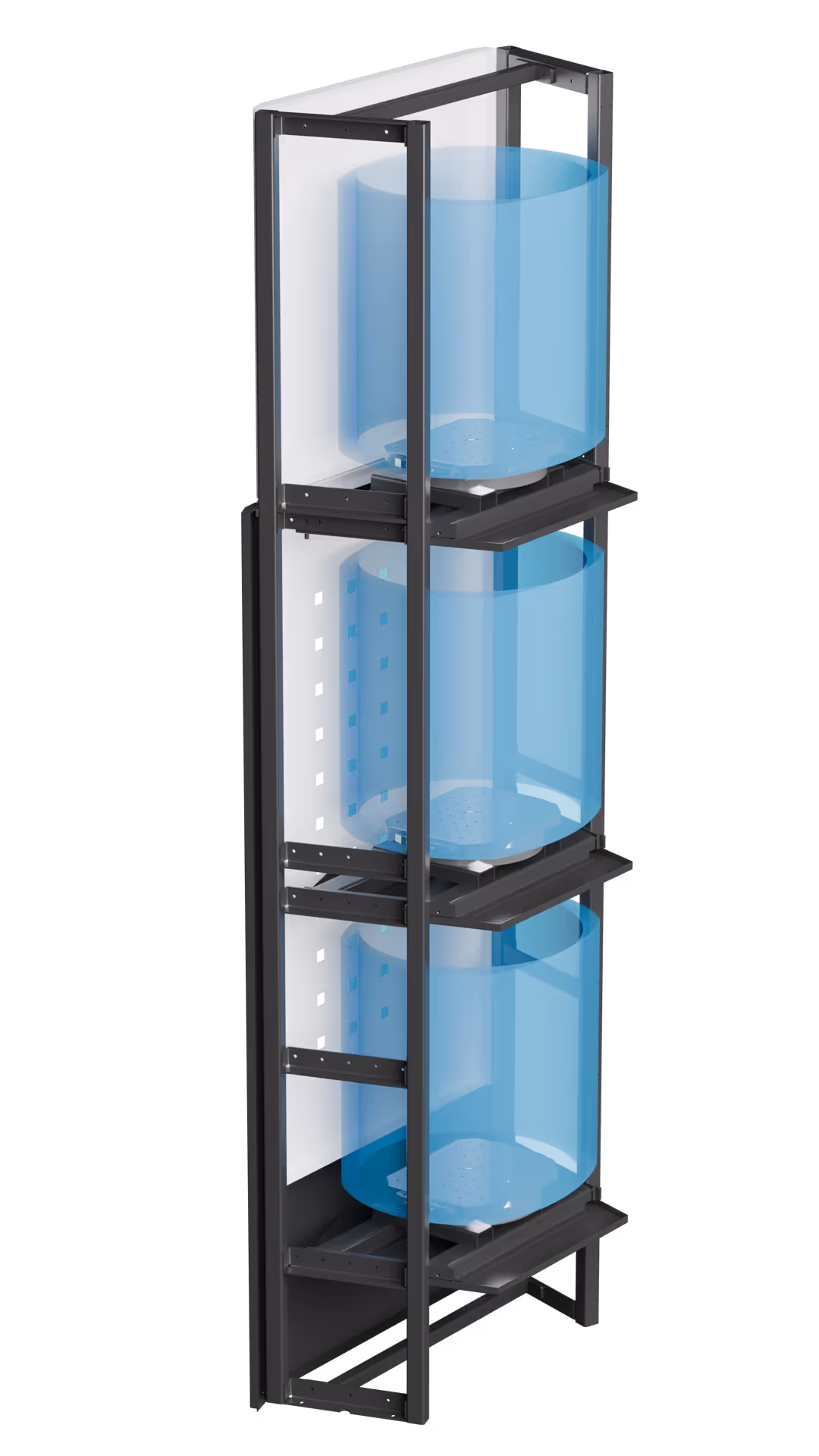

Extension floor
extension by one level
placed onto the second level
increased the overall height of the rotary storage
no restriction on the maximum workpiece height
Extension shelf
extension by one shelf
additional shelf is added
height of the rotary storage system remains the same as the base module
restriction on maximum workpiece height
exception: when connecting the RSP H4 to the HF5500, there is no restriction on the maximum workpiece height

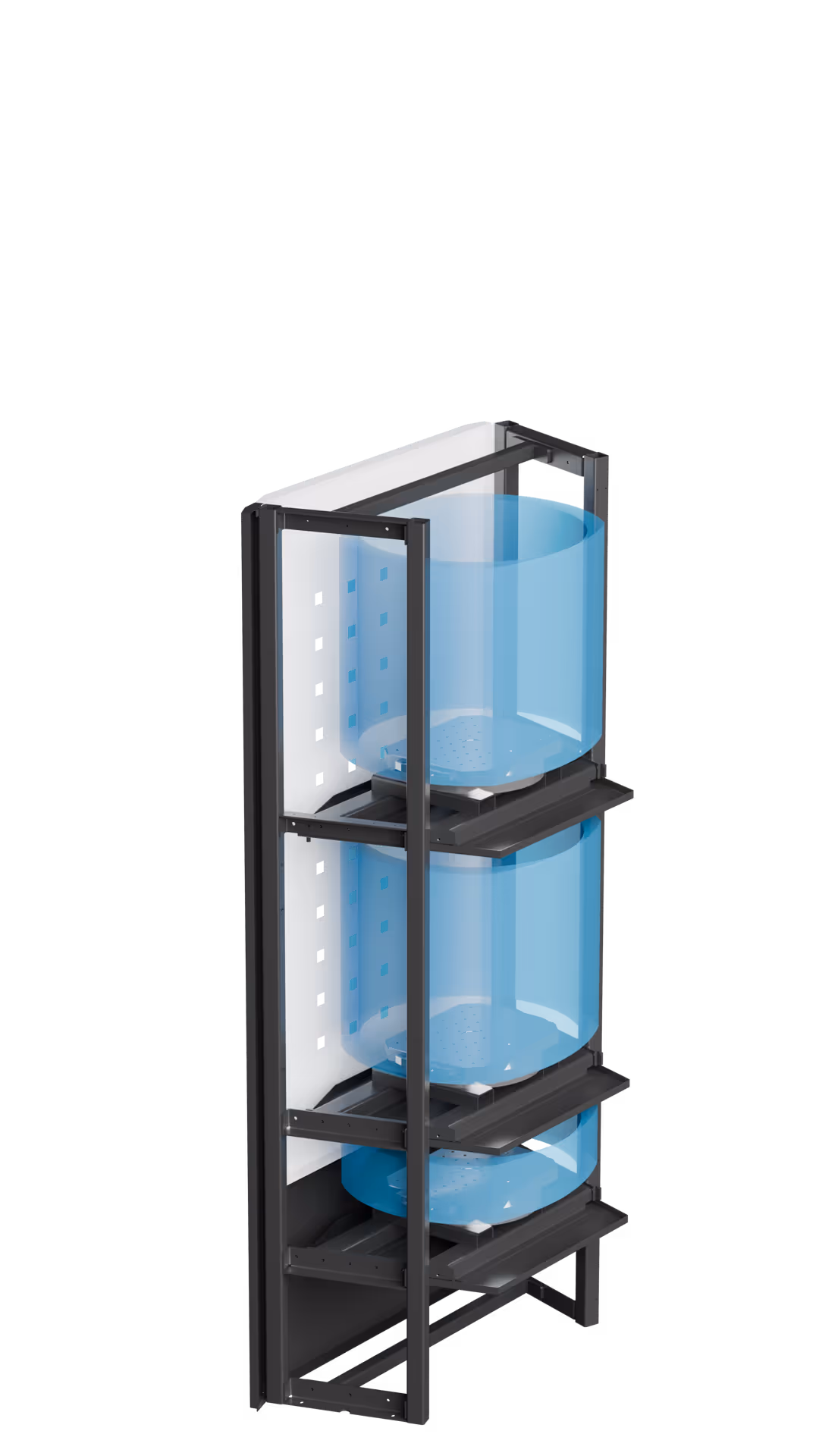

Flexible shelf height
shelf height configuration according to customer requirements
restriction of the maximum workpiece height depending on the desired shelf height configuration
Loading station
can be flexibly positioned in the rotary storage system
optimised for crane loading as required
doors automatically separate the loading station from the storage system when opened
touch design control panel on the loading station
media gun holder integrated into the loading station
loading station can be manually rotated in 4 x 90° increments for easy cleaning
air gun for cleaning of workpieces
Options
electrically operated automatic doors
second loading station
hydraulic workpiece clamping with 80 or 200 bar and variable clamping pressure available for each loading station
coolant gun for cleaning of workpieces
pump for automatic recirculation of the coolant to the machine
loading station with internal lighting
Maintenance door
To access the inside of the RSP, the front control panel can be swung to the side, providing access to the control cabinets and service units.
Control cabinet for power electronics
All the components of the power electronics are located in the control cabinet on the RSP robot.
Control cabinet for control technology
On the inside of the maintenance door is a control cabinet that contains all control technology components.
User interface
Extremely simple operation thanks to modern and clear user interface on a slim touch panel
From the simple interface with 2 signals to the full bus interface - all options for machine connection

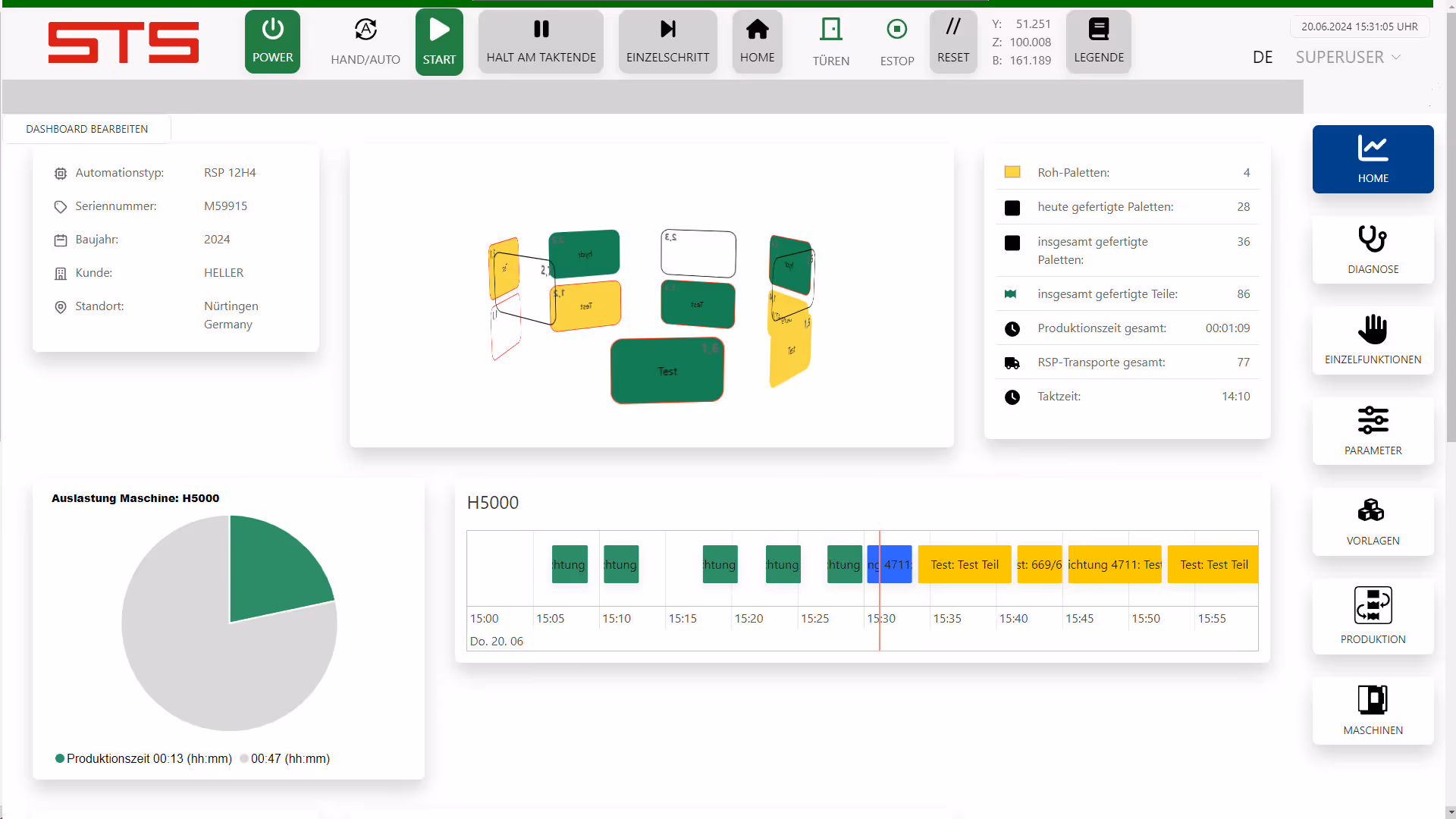

All data is securely stored in a database and clearly displayed in the timeline
Maximum flexibility thanks to freely configurable pallets and part types
With high-end control via IPC and PLC, ready for any challenge in the digital revolution

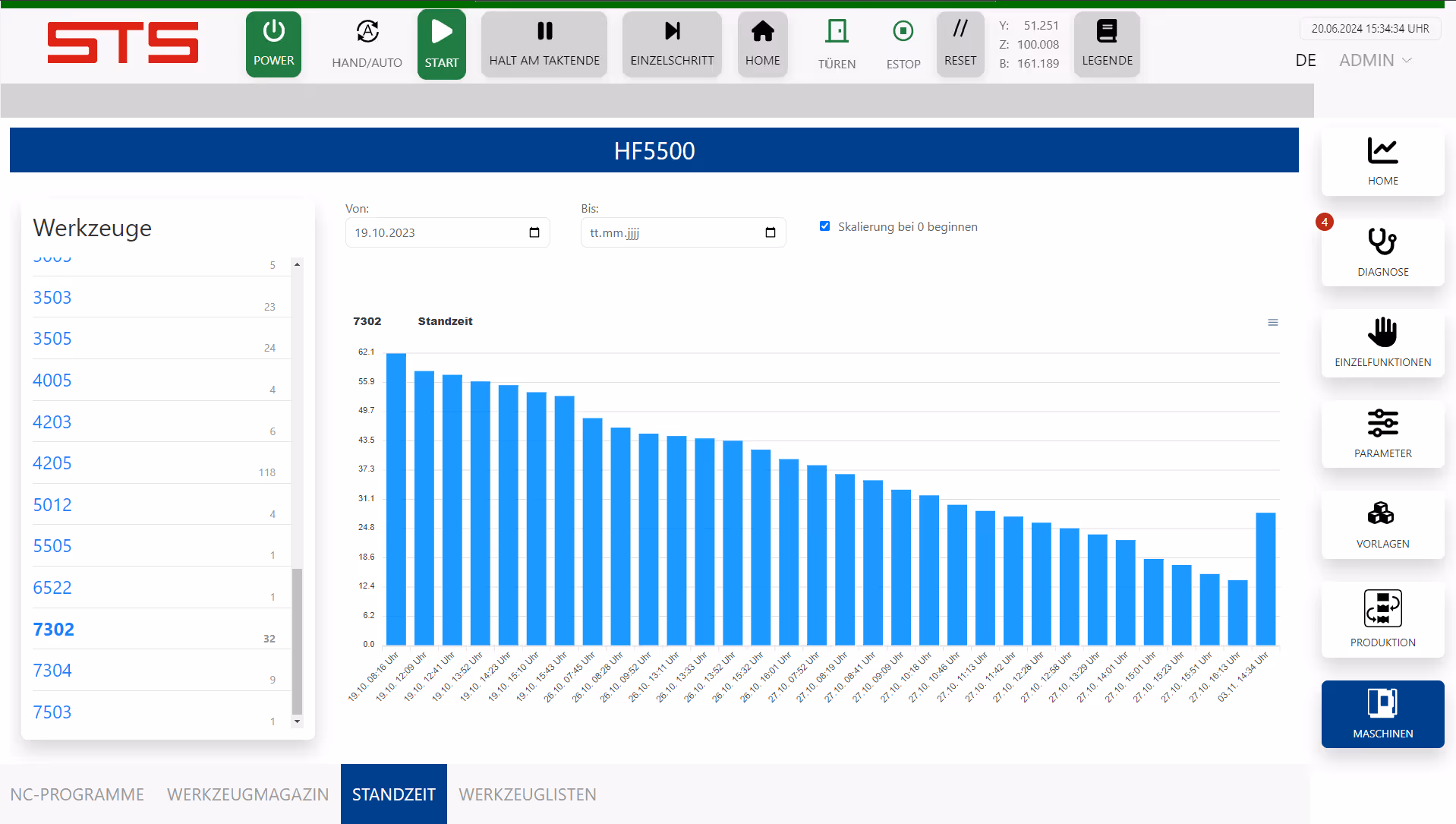

NC program management and tool management ensure efficient and smooth production.

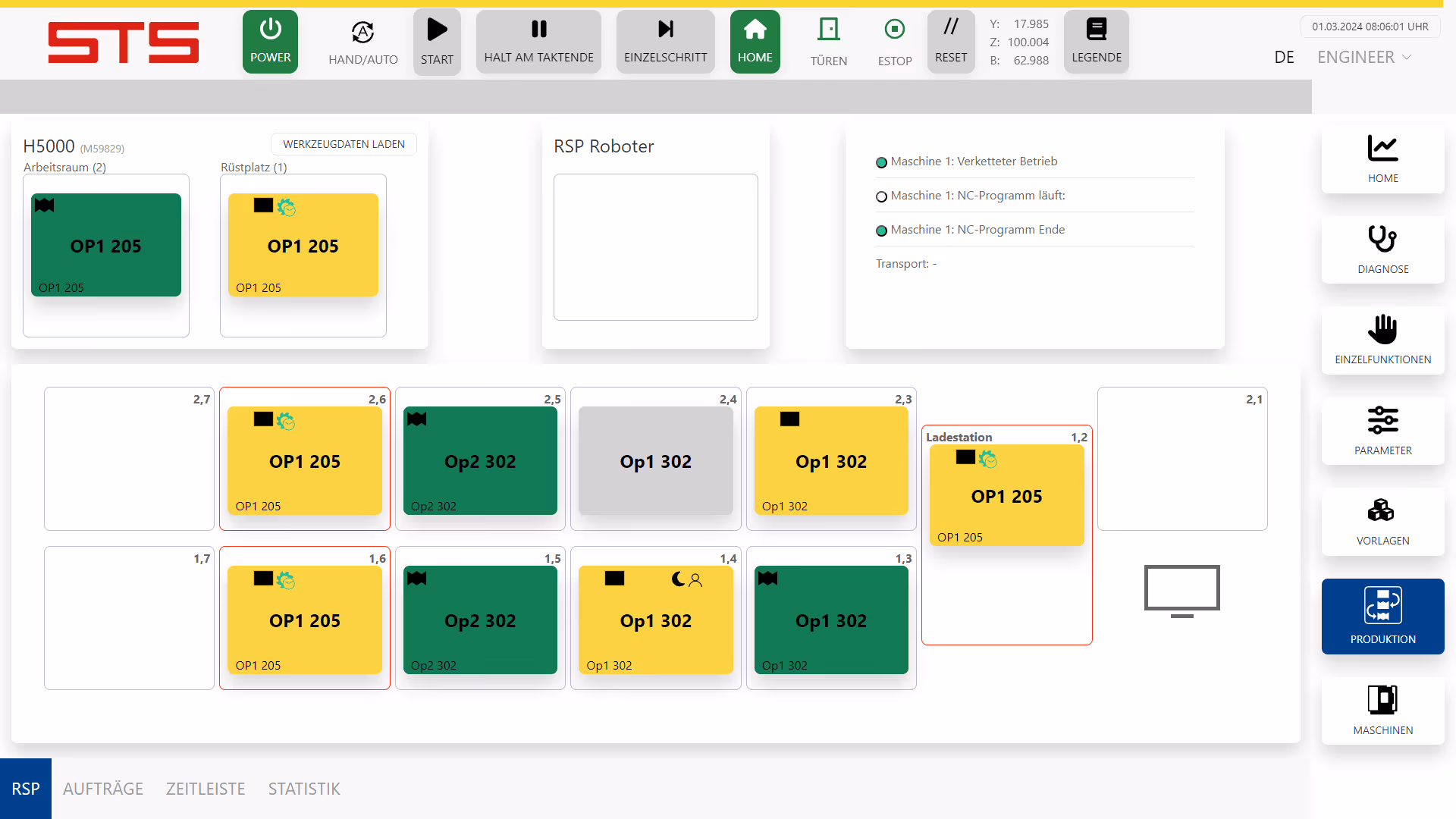

Other functions such as virtual pallets and transport management improve the material flow and tool planning
Always up-to-date even outside the machine hall: web server dashboard and messaging service for every smart end device
